ID MRU400X

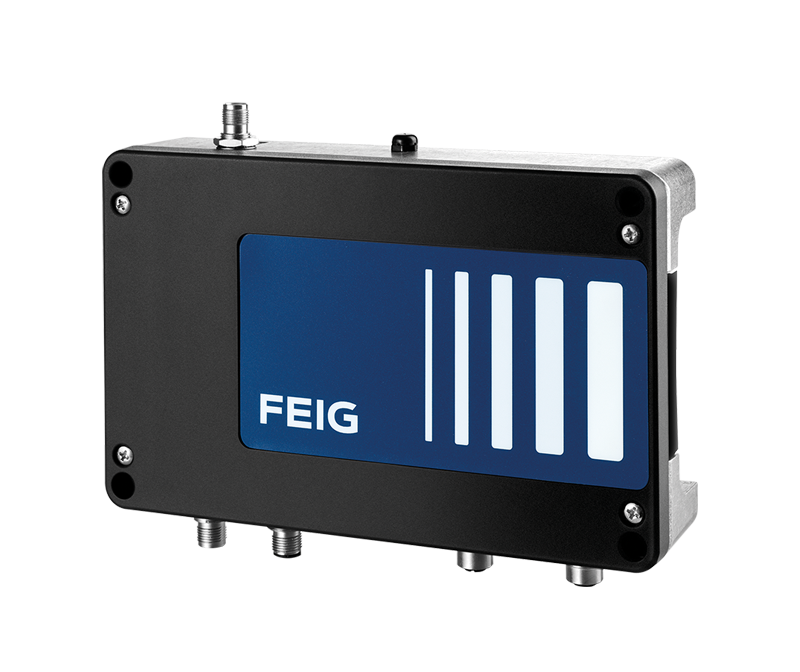

UHF mid range reader with integrated antenna for applications in industrial and railway environment.
UHF mid range reader module for integration into machines and systems
Key Features
- Robust housing with M12 connectors
- Developed for harsh environmental conditions (IP65 / IP67)
- Internal circular polarized antenna for any orientation of the transponders
- Internal antenna and external antenna connection
- Read range of over 4 m
- Integrated antenna leads to “all-in-one” reading point, so no additional external antenna is required
- Various power modes
- Variable interfaces: RS485, USB, Ethernet
- Supports Low Level Reader Protocol (LLRP)
- International radio approvals
| Dimensions (w x h x d) | Without Connectors: approx. 225 mm x 140 mm x 55 mm, With Connectors: ca. 225 mm x 190 mm x 55 mm |
|---|---|
| Weight | approx. 1200 g |
| Housing | Aluminium housing, plastic cover |
| Color | Aluminium, anthracite (cover) |
| Protection Class | IP65, IP67 |
| Power Supply | 12 V – 24 V DC ± 10 %, Power-over Ethernet (PoE+) |
| Output Power | intern: max. 1 W ERP, extern: max. 1 W, adjustable in 100 mW steps |
| Antenna Connector | 1 x R-TNC socket (50 Ohm), multiplexer integrated |
| RF Diagnosis | RF channel monitoring, antenna SWR monitoring, integrated overheating control |
| Connections | Power supply, RS485, USB, I/Os: plug-in terminals, Ethernet: RJ45 socket on the outside of the housing with the option of sealing |
| Outputs | 1 Optocoupler max. 24 V DC / 20 mA 1 Relays max. 24 V DC / 1 A switching current, 2 A permanent current |
| Inputs | 1 Optocoupler max. 24 V DC / 20 mA |
| Interfaces | RS485, Ethernet (IPv4/IPv6), USB (On-the-Go) |
| Computing Platform (Linux OS) | ARM single Cortex-A7 800 MHz + Cortex-M4 (RFID), 1 GB Flash, 512 MB RAM |
| Reader Modes | Host Mode, Buffered Read Mode, Notification Mode |
| Indicator | Highly visible status display (green/red/blue; customizable indication) |
| EU version | 865 MHz - 868 MHz |
| FCC version | 902 MHz - 928 MHz |
| Others | Anti-Collision, Output of RSSI values and phase angle, Secure Key Storage, “Config Cloning” function, Action-on-EPC, Web-Interface |
